ALVNA TEST AUTOMATION
Test Automation
One Platform. Built for Your Test Requirements.
Custom automated test systems from 80 to 10,000+ channels, with integrated cloud and Multi Site capabilities, configurable form factors and scalable test execution.
Improve QualityCatch issues early
Increase ThroughputGet more products to market
Reduce Test CostMaximize your investment
Scalable PlatformFrom 80 to 10,000+ channels
ONE CUSTOMIZABLE PLATFORM
Engineered for your test requirements. Scalable by design.
ALVNA Test Automation Platform is configured around your product, measurements, workflow and production space. Begin with as few as 80 channels and expand to 10,000+ channels as the application grows. Hardware, software, routing, fixtures and mechanical integration are tailored to your needs.
Example performance: approximately 320 channels in under 30 seconds for a single sweep under applicable test conditions. Actual timing depends on instruments, measurements, routing and application complexity.
Start compact
Practical 80 channel starting configurations for focused product and production functional tests.
Expand as needed
Modular switching, measurement and control resources scale into thousands of channels without locking you into a fixed product model.
Run concurrent sweeps
Coordinate multiple independent sweeps at the same time when test architecture and instruments support parallel execution.
FLEXIBLE PHYSICAL CONFIGURATION
From a workbench tester to a full equipment rack.
The same platform can be built around the product and the production environment, not the other way around.
Benchtop functional testers
Small, accessible test stations for routine production functional testing, operator workflows and validation.
Compact rack systems
Rack configurations starting around 6U where space, instrumentation and channel needs allow.
Full size rack systems
Cabinets up to approximately 6 ft tall for complex systems with thousands of channels and additional instruments.
Customer integrated form factors
Custom enclosures, fixtures, connectors, access panels and mechanical arrangements shaped to your product or manufacturing cell.
Dimensions are examples, not fixed product limits. Final form factor depends on system complexity, service access, cooling, safety and customer requirements.

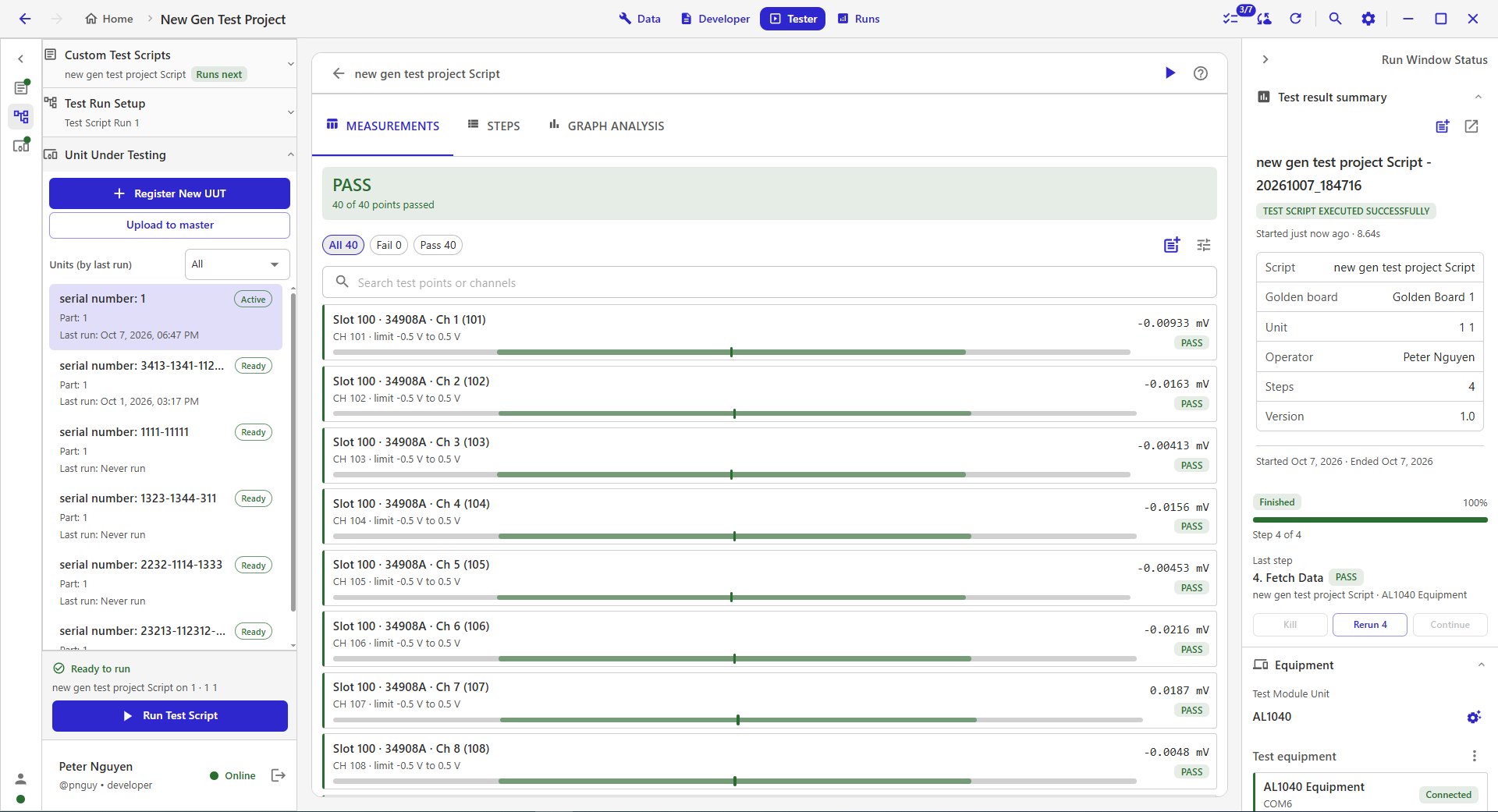

ALVNA INTERFACE SOFTWARE
Control, sequence and record from one environment.
The ALVNA Test Automation Platform includes ALVNA Interface Software for channel control, automated test execution and data acquisition management.
Sequence control
Create, name, describe, enable and disable test steps with reusable setup and cleanup logic.
SCPI and scripts
Use industry standard SCPI communication to control compatible instruments, automate measurements, coordinate test sequences and integrate instrument specific commands directly into the test process.
Traceable results
Record operator, golden board, unit under test, step count, duration, start and end time, per channel measurements, min and max limits and result summaries.
SERVICEABLE HARDWARE
Built to be understood, not hidden.
From benchtop units and compact 6U rack configurations to full size equipment racks and custom integrated enclosures, labeled instrumentation and accessible architecture simplify service and expansion. Channel groups and relay banks are labeled so maintenance does not depend on a black box.
SYSTEM ARCHITECTURE
Controller, relay matrix, instrumentation and DUT.
The controller coordinates the user interface and relay matrix while integrating power supplies, measurement units and the device under test through standard interfaces.
Signal routingDAQ integrationPower controlFixture interface
CLOUD AND MULTI SITE TEST AUTOMATION
Connect test operations across stations and locations.
Built on a scalable, cloud connected architecture, the ALVNA Test Automation Platform supports centralized management, distributed test operations, and coordinated testing across multiple locations. Configure test stations and production sites to share operational visibility and test information according to deployment requirements.
Local execution
Run testing at the station while connecting the operational workflow to centralized services as configured.
Cloud connectivity
Bring results and relevant test information into connected workflows for centralized access.
Multi Site operations
Support distributed production facilities with shared visibility and coordinated test management.
FOUNDING CUSTOMER PROGRAM
Early deployments with direct engineering access.
Early adopter benefits
Early adopter pricing, priority production allocation and direct access to the ALVNA engineering team.
Application support
Application and test program support plus preferred pricing on future system expansion.
Tailor your deployment
Access to ALVNA software, cloud connectivity and Multi Site capabilities, with feedback that can help guide what we build next.
